Parameter

Details

Model

SS-VZ50L5-LPR-VF-M2

Make

SECURUS

Hardware Indexes

Name

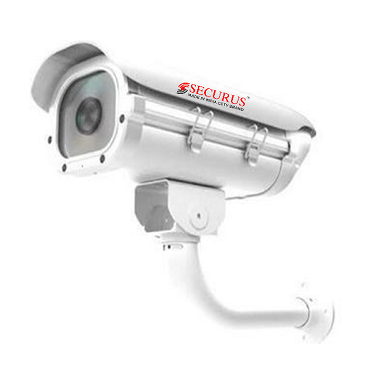

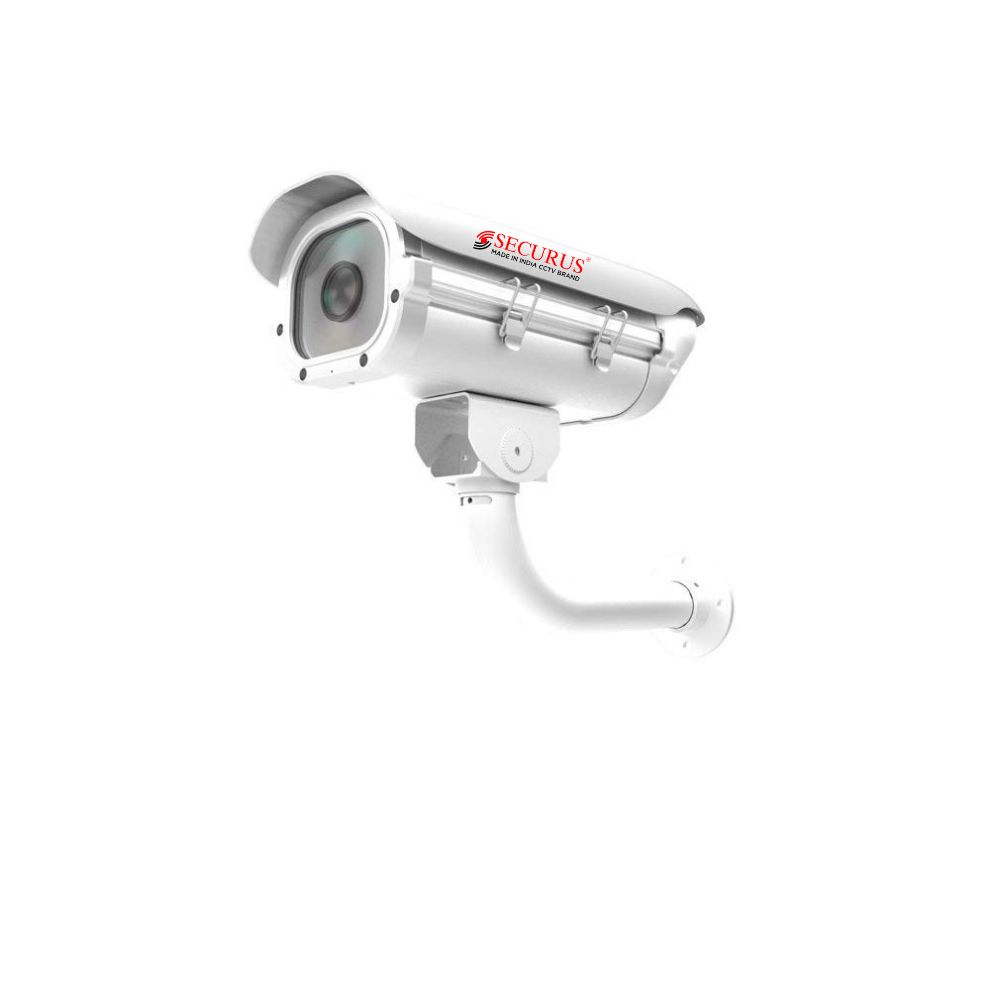

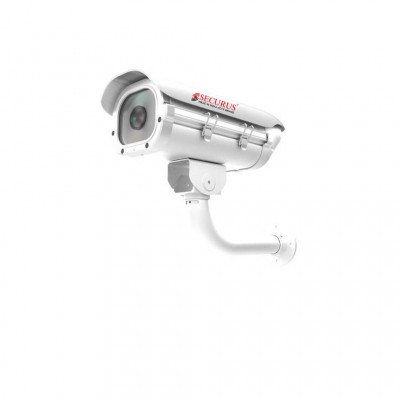

Intelligent ANPR Camera

Processor

Specialized License Plate Recognition Chip

Sensor Type

SONY 1/2.8” Progressive Scan CMOSṁ

Minimum Illumination

0.1 Lux

Electronic Shutter

0-1 ms, 0-2ms, 0-3ms, 0-4ms

Range

50 Meters

Lens

CS mountable, 5.0mm ~ 50mm

WDR

120db

Performance Indexes

Plate recognition rate

99% (if the optional recognition condition met)

Recognizable license plates

India

Triggering mode

Video triggering, Coil trigger, vehicle capturing rate > 99%

Image Output

1080P (1920x1080), 960P(1280x720), D1(704x576)

Picture Output

2 Megapixel JPEG

Video Compression Format

H.265/H.264/MJPEG

Interface And Electric Parameters

Network Interfaces

10/100M network adaptive, RJ45 adaptor

IO Interface

4 input/2 Output

Audio Interface

1 audio input (line in)/

1 audio output (line out)

Serial Interfaces

1 RS485

TF Card

Support SD2.0 standard micro SD(TF) card with a maximum capacity of 128Gb

Power Supply

12V DC

Power Consumption

<5W

Working Temperature

-20 C - +70 C

Protection Level

IP 65

Size(mm)

45(mm)x130mm(W)x104mm(H)

Gross Weight

2.5 Kg

Algorithm Specifications

Condition

General  Recognition Range

Optimal  Recognition Range

Car Speeds

<50Km/h

<30Km/h

Installation Level  Angle

<60

<40

Installation

Depression Angle

15-40

<20

Read Range

2-7m

3-5mm

Plate Pixel

80-600 Pixel

140-240 Pixel

Recognizable

License Plates

India (According to common license  plate type in India, it is normal that  the algorithm does not correctly identify  the sample font that has never  appeared)

Recognizable Plate  Definition

The License Plate is clearly recognizable, free of stains and deformation. If the human observation is difficult to recognize, the algorithm is not correctly identified as a normal phenomenon
