Parameter

Details

Model

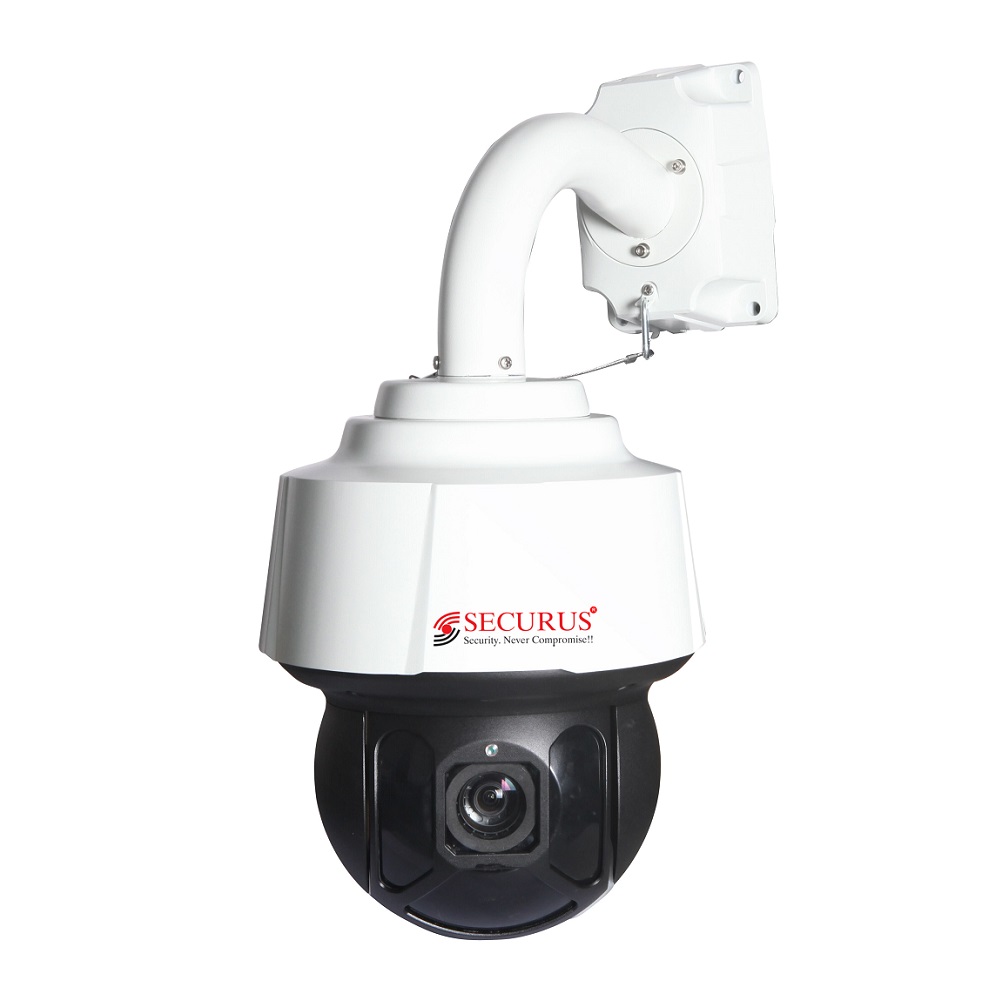

SS-NE44XS-M2

Make

SECURUS

Image Sensor

1/2.8”, 3.0 Megapixel CMOS Sensor

Lens

4.6mm ~ 202.0 mm (44x Optical Zoom)

Iris

Auto/Manual; F1.6 ~ F3.0

Field of View (FOV)

2.32˚ ~ 61.2˚

Shutter Time

1/25s ~ 1/100000s

Minimum Illumination

Color: 0.005Lux@F1.2 B/W: 0.001Lux@F1.2

 (IR ON: 0.0 Lux)

S/N Ratio

≥ 50dB

Day/Night Mode

IR-Cut filter with auto switch (ICR)

IR Distance

300 Meters

Audio Compression

G.711, PCM

Audio Input

Built-in Audio/ RCA Input (Optional)

Video compression

H.264, H.265, H.265+, H.265AI

Video Resolution

2304 x 1296 Pixels (Max)

CVBS Output

Supports 1 x BNC Video Output(Optional)

Frame Rate

2304 x 1296; 1920 x 1080; 720 x 576;

20/25/30 FPS

Video Streams

Triple Streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 Areas

Digital Zoom

Supports (Max 16X)

Alarm I/O

1/1 (Optional)

Network Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, QOS, NTP, FTP, HTTP, SNMP

Compliance

ONVIF

Pan Range

360° Continuous Rotation

Pan Speed

0.02°/s ~ 200°/s

Tilt Range

-0° ~ +115° (Auto-Reverse)

Tilt Speed

0.02°/s ~ 100°/s

AB Scan Speed

1 ~ 9 Grades

Presets

220/500 Presets

Dwell Time

1s ~ 60s Selectable

Guard Tours

3 Tours

Guard Points

Max: 16 Points

Communication Protocol

Pelco-D; Pelco-P

Baud Rate

9600BPS (Default)

Intelligent AI Feature

Face Detection, Active Deterrence, Line Crossing, Human Auto Tracking, Trip Wire

Park Time

1 ~ 60 Minutes

Network

10M/100M Base-TX Ethernet

SD Card

Supported (Max: 512 GB) (Optional)

Power Supply

12V 4Amp

Power Consumption

~ 25W (Without IR)

Power Over Ethernet (POE)

IEEE802.3af/at External POE (Optional)

Multiple Browsers

Supports (Chrome, Mozilla, Edge, Opera)

Housing Material

Aluminum + ABS

Mounting Bracket

Wall Mounted/Pole Mounted

Weight

5.28 KGs

Working Temperature

-40°C ~ +60°C

Working Humidity

≤90% RH (Non Condensing)

Ingress Protection

IP67

Lightning Protection

Transient Voltage 6000V

Certifications

CE, FCC, ROHS, BIS
