Parameter |
Details |
Model |

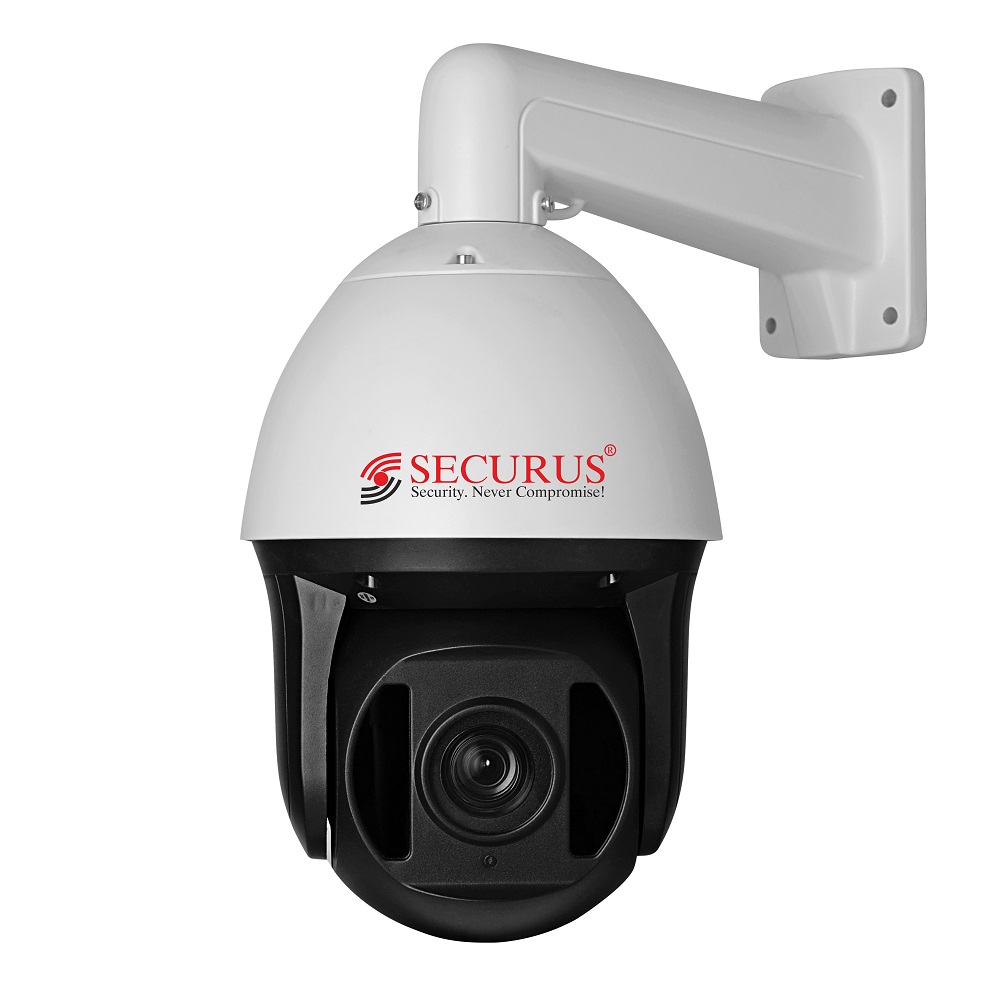

SS-NE30XSP-M5 |
Make |
SECURUS |
Image Sensor |
1/2.8”, 6.0 Megapixel, progressive scan, CMOS Sensor |
Lens |
4.5mm ~ 135mm (30x optical zoom) |
Auto control IR LED |
PWM |
IR Distance |
6Pcs IR LEDs+2Pcs Laser LEDs |
Iris |
Auto/Manual; F1.6 ~ F4.8 |
Shutter |
Auto/Manual |
Shutter Time |
1/25s ~ 1/100000s |
Minimum Illumination |
Color: 0.005Lux@F1.2 B/W: 0.001Lux@F1.2 (IR ON: 0.0 Lux) |
S/N Ratio |
≥ 50dB |
Day/Night Mode |
IR-Cut filter with auto switch (ICR) |
IR Distance |
150 Meters |
Audio Compression |
G.711 |
Audio Input |
Supports built-in Audio (Optional) |
Video compression |
H.265+, H.265, H.264 |
Video Resolution |
3072 x 2048 Pixels (6.0 MP) (Max) |
CVBS Output |
Supports 1 x BNC Video Output (Optional) |
Frame Rate |
3072 x 2048; 2592 x 1944; 1920 x 1080; 720 x 576; 20/25/30 FPS |
Video Streaming |
Triple Streams |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 8 Areas |
Digital Zoom |
Supports |
Alarm I/O |
1/1 (Optional) |
Intelligent AI Feature |
Face Detection, Vehicle Detection, Active Deterrence, Line Crossing, Trip Wire, Human Auto Tracking |
Network Protocols |
TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS,HTTPS, 802.1X, P2P |
Software Control |
IE, CMS, P2P(P6SLite) |
Compliance |
ONVIF |
Pan Range |
0°~360° |
Pan Speed |
0°/s ~ 200°/s |
Tilt Range |
-0° ~ +93° |
Tilt Speed |
0°/s ~ 100°/s |
Auto Flip |
Pan: 180°; Tilt: 93° |
Presets |
220/500 Presets |
Dwell Time |
1s ~ 60s Selectable |
Guard Tours |
3 Tours |
Guard Points |
Max: 16 Points |
Communication Protocol |
Pelco-D; Pelco-P |
Baud Rate |
9600BPS (Default) |
A-B Scan |
User programmable (Scan Speed 1-64 levels setting available) |
BLC |
Support |
AGC |
Auto/Manual |
WB |
Auto/Manual/Indoor/Outdoor |
DNR |
2DNR, 3DNR |
WDR |
DWDR |
Park Time |
1 ~ 60 Minutes |
Network |
10M/100M Base-TX Ethernet |
Power Supply |
12V 4Amp/POE(Optional,802.3at) |
Power Consumption |
~ 25W (Without IR) |
SD Card |
Supported (Max: 512 GB) (Optional) |
Multiple Browsers |
Supports (Chrome, Mozilla, Edge, Opera) |
Housing Material |
Aluminum + ABS |
Weight |
5.28 KGs |
Working Temperature |
-40°C ~ +60°C |
Working Humidity |
≤90% RH (Non Condensing) |
Ingress Protection |
IP67 |
Lightning Protection |
Transient Voltage 6000V |
Certifications |
CE, FCC, ROHS, BIS |
