Parameter

Details

Model

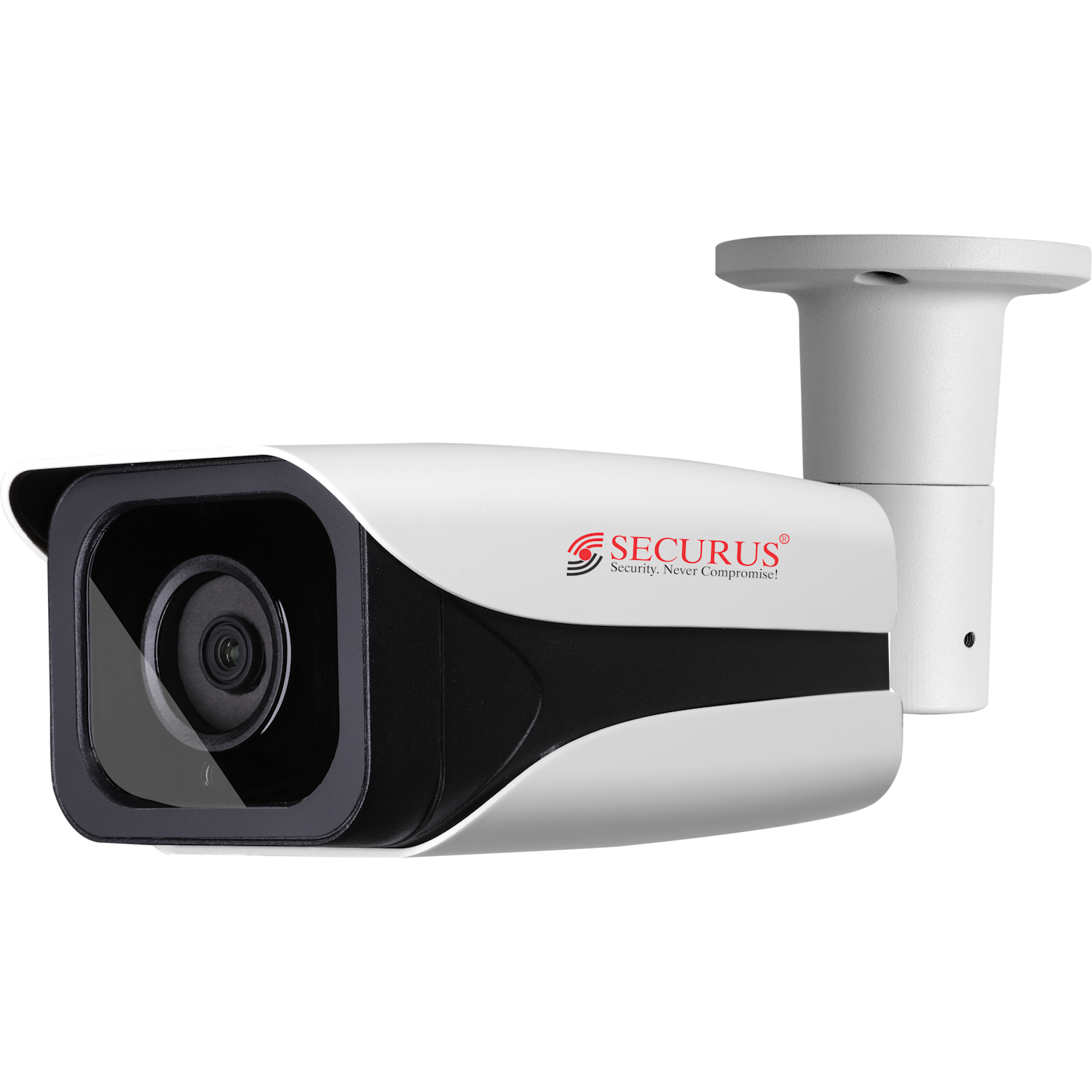

SS-NC50L5CP-PX-VF-M5

Make

SECURUS

Image Sensor

1/2.7“ Progressive Scan CMOS

Image Pixels

3072 x 2048 Pixels (6.0 MP)

Minimum Illumination

Color: 0.005Lux@F1.2; B/W: 0.001Lux@F1.2

Day/Night

Auto (ICR) / Color / Black & White

WDR (Wide Dynamic Range)

≤140db

IR LED

4 Pcs High Power LED Array

IR Distance

30 ~ 100 Meters

Shutter Type

Manual/Auto

Shutter Speed

1/25s ~ 1/100000s

Lens Mount

2.8mm~12.0mm/2.7mm~13.55mm/

6.0mm~22.0mm/5.0mm~50mm

Motorized Auto-Focus Lens

SD Card

Supported (Max: 512 GB) (Optional)

Network Interface

10/100 MBPS RJ45 Connector

Network Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP

General function

Motion Detection, Tampering Alarm

Video Encoding

H.265AI/H.265+/H.265/H.264+/H.264

Video Bitrate

128kbps ~ 8Mbps

Video Streams

Triple Stream

Video Stream Resolution

Max : 3072 x 2048; 2592 x 1944;

1920 x 1080; 25/30 FPS

Digital Zoom

Supported (Max: 16X)

Audio Input

Yes; 1Ch; 2Vp-p 1kᲲ (Optional)

Audio Output

Yes; 1Ch; 16Ჲ (Optional)

Audio Compression

G.711 (Optional)

Image Setup

Mirror Image/Reverse/Color Settings

Alarm Trigger

Motion detection, HDD full, HDD error, IP Address conflict, Illegale Login, Video Loss

Intelligent AI Feature

Face Detection, Vehicle Detection,

Human Detection, Active Deterrence,

Line Crossing, Trip Wire

Operation Temperature

-10°C ~ +65°C

Operation Humidity

0% ~ 90%

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

≤3.6W without IR; ≤8W with IR

Multiple Browsers

Supports (Chrome, Mozilla, Edge, Opera)

Housing Material

Aluminum + ABS

Dimensions

180mm x 70mm x 70mm

Weight

≤0.5 KGs

Ingress Protection

IP67 & IK10

Certifications

CE, FCC, RoHS, BIS
