Parameter

Details

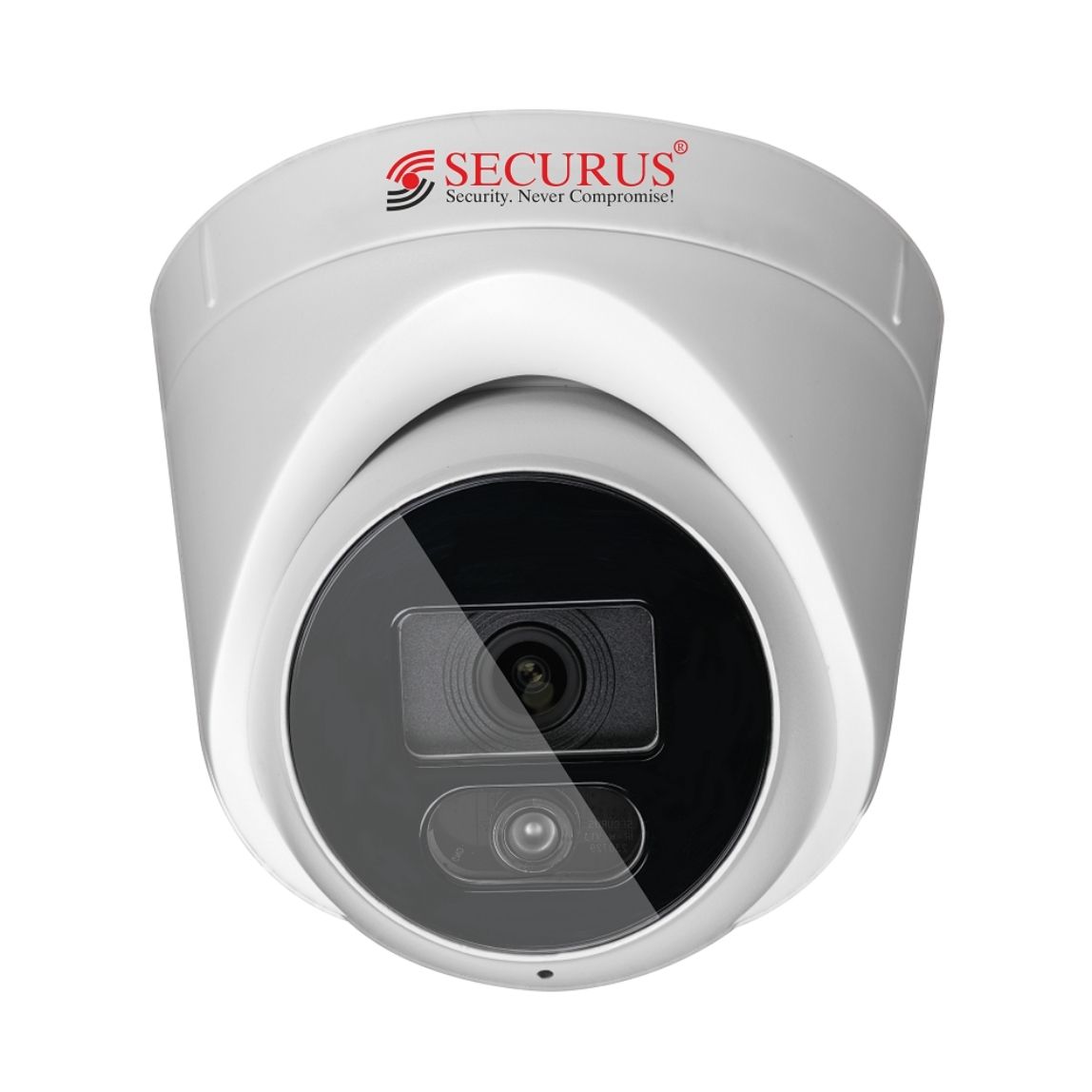

Model

SS-NC15DXLP-SEUTL-M5(S)

Make

SECURUS

Product Range

Utility Range

Image Sensor

1/2.7“ Progressive Scan CMOS

Image Pixels

2592 x 1944 Pixels (5.0 MP)

Minimum Illumination

Color: 0.005Lux@F1.2; B/W: 0.001Lux@F1.2

Day/Night

Auto (ICR) / Color / Black & White

WDR (Wide Dynamic Range)

≤140db

IR LED

1Pcs IR LED

IR LED Technology

SmartEXIR® Technology

IR Distance

15 ~ 30 Meters

Shutter Type

Manual/Auto

Shutter Speed

1/25s ~ 1/100000s

Lens Mount

2.8mm/3.6mm/4.0mm/6.0mm

Lens Type

Board Lens

Network Interface

10/100 MBPS RJ45 Connector

Network Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP

Video Encoding

H.265AI/H.265+/H.265/H.264+/H.264

Video Bitrate

128kbps ~ 8Mbps

Video Streams

Triple Stream

Video Stream Resolution

Max : 2592 x 1944; 1920 x 1080; 720 x 576; 25/30 FPS

Digital Zoom

Supported (Max: 16X)

Audio Input

Yes; 1Ch; 2Vp-p 1kᲲ Impedance

Audio Output

Yes; 1Ch; 16Ჲ Impedance

Audio Compression

G.711

Image Setup

Mirror Image/Reverse/Color Settings

Alarm

N/A

Intelligent AI Feature

Face Detection, Vehicle Detection,

Human Detection, Active Deterrence,

Line Crossing, Trip Wire

Operation Temperature

-10°C ~ +65°C

Operation Humidity

0% ~ 90%

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

≤3.6W without IR; ≤6W with IR

Multiple Browsers

Supports (Chrome, Mozilla, Edge, Opera)

Housing Material

Aluminium + ABS

Dimensions

180mm x 70mm x 70mm

Weight

≤0.5 KGs

Ingress Protection

IP67

Certifications

CE, FCC, RoHS
