Parameter

Details

Model

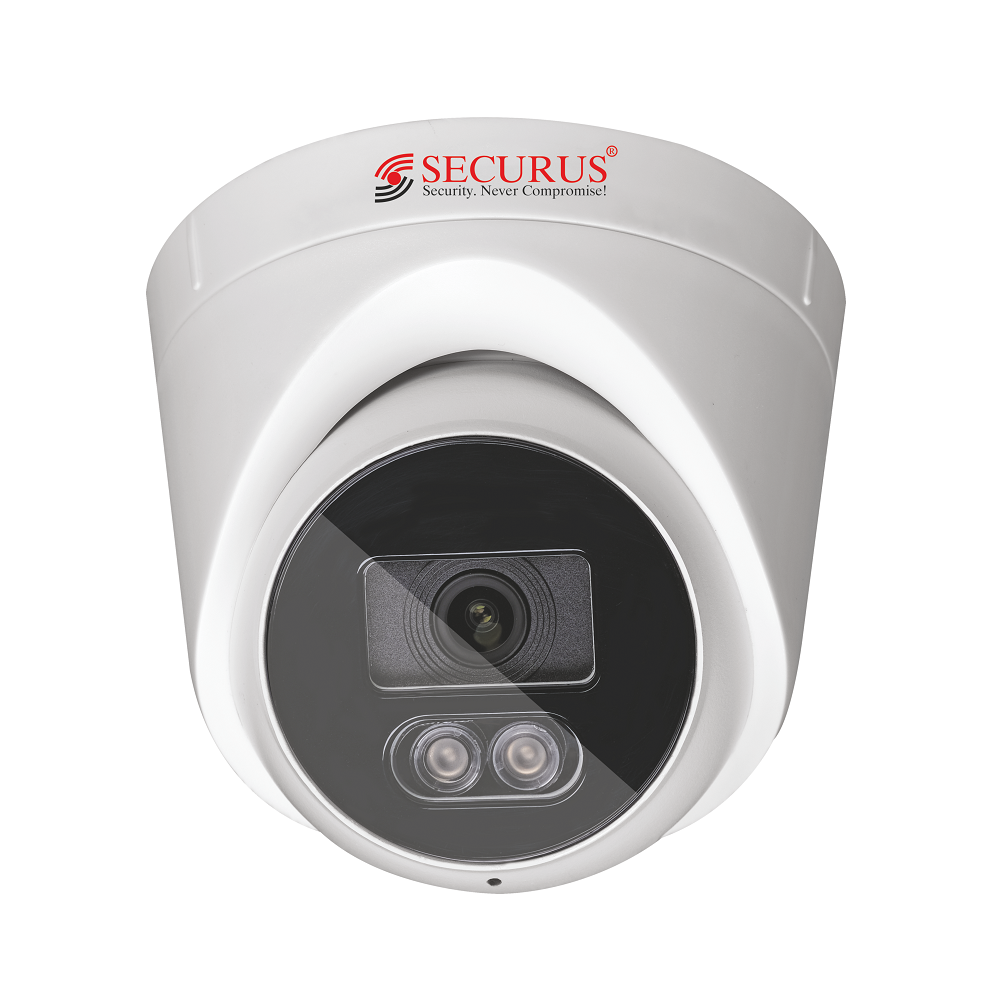

SS-NC15DXLP-QMSEF-M8(S)(4K)

Make

SECURUS

Image Sensor

1/2.7“ Sony STARVIS CMOS Sensor

Image Pixels

3840x2160 (8.0MP), 2880x1616 (5.0MP), 2560x1440 (4.0MP), 2304x1296 (3.0MP), 1920x1080 (2.0MP)

Minimum Illumination

Color: 0.0001Lux@F1.2;

B/W: 0.0001Lux@F1.2, AGC ON, 0Lux with IR

Day/Night

Auto (ICR) / Color / Black & White

WDR (Wide Dynamic Range)

≤140db

IR LED

2Pcs IR LED

IR LED Technology

SmartEXIR® Technology

IR Distance

15 ~ 30 Meters

Shutter Type

Manual/Auto

Shutter Speed

1/25s ~ 1/100000s

Lens Mount

2.8mm/3.6mm/4.0mm/6.0mm

Lens Type

Board Lens

Network Interface

10/100 MBPS RJ45 Connector

Network Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP

Video Encoding

H.265AI/H.265+/H.265/H.264+/H.264

Video Bitrate

128kbps ~ 8Mbps

Video Streams

Triple Stream

Video Stream Resolution

Main Stream: 3840 x 2160 @15FPS;

2880 x 1616 @25/30FPS; 2560 x 1440 @25/30FPS; 1920 x 1080 @25/30 FPS

Sub Stream 1: 800 x 448 @25/30FPS

Digital Zoom

Supported (Max: 16X)

Audio Input

Yes; 1Ch; 2Vp-p 1kᲲ Impedence

Audio Output

Yes; 1Ch; 16Ჲ Impedence

Audio Compression

G.711

Image Setup

Mirror Image/Reverse/Color Settings

Alarm I/O

Yes (Optional)

Intelligent AI Feature

Human Detection, Face Detection, Vehicle Detection, Active Deterrence,

Line Crossing, Trip Wire

Operation Temperature

-10°C ~ +65°C

Operation Humidity

0% ~ 90%

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

≤3.6W without IR; ≤6W with IR

SD Card

Supported (Max: 512 GB) (Optional)

ONVIF

ONVIF Conformant

Multiple Browsers

Supports (Chrome, Mozilla, Edge, Opera)

Housing Material

Aluminium + ABS

Dimensions

115mm x 115mm

Weight

≤1.0 KGs

Ingress Protection

IP67

Certifications

CE, FCC, RoHS, BIS
