Parameter

Details

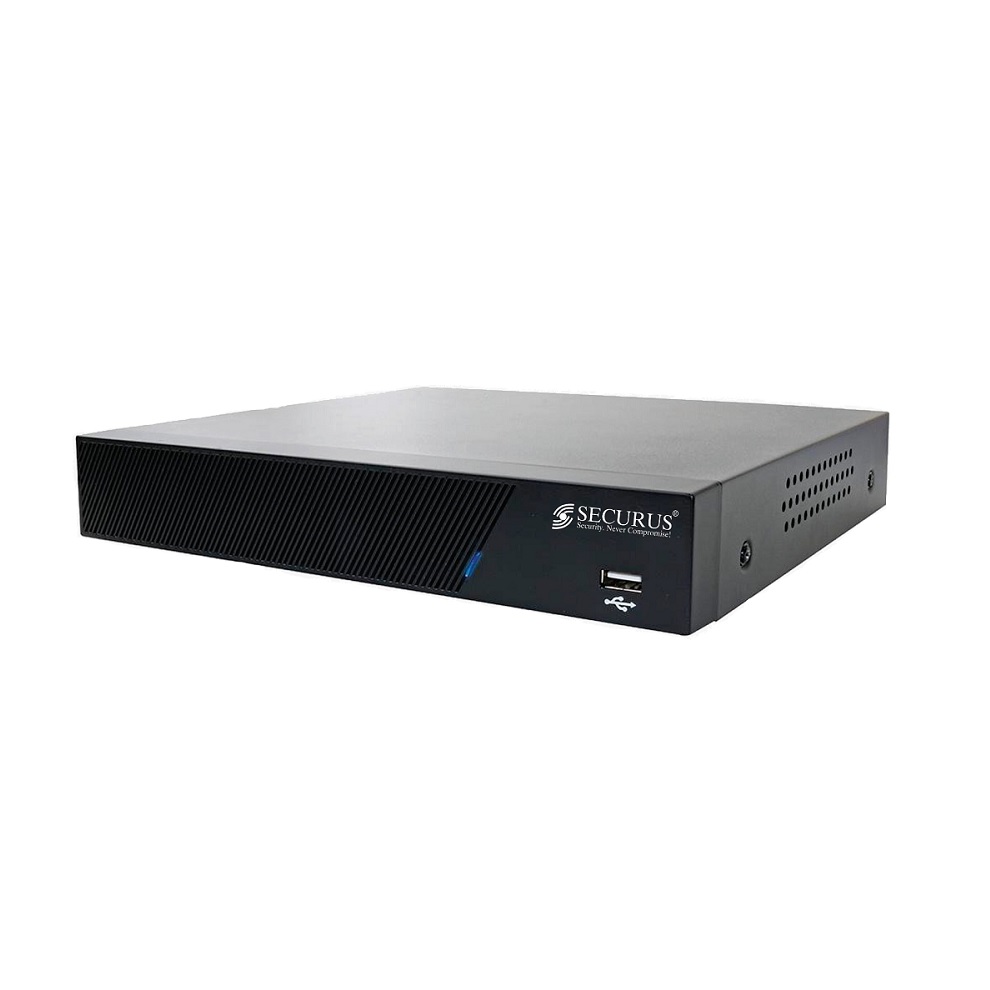

Model

SS-8161-TPHD-M5(SF)

Make

SECURUS

User Interface

Graphic User Interface (GUI)

Operating System

Embedded Linux

Video Compression

H.265+, H.265, H.264

Video Input

16 CH BNC

Video Output

HDMI, VGA,BNC

VGA Output

Available

HDMI Output

Available

Display Resolution

HD 5MP; 5MN; 1080P; 1080N; 720P

Audio Compression

G.711A

Bi-Directional Talk

Available

Audio Input

1CH

Audio Output

1CH

Recording Mode

Manual/Alarm/Motion/Schedule

Recording Resolution

5MN; 1080P, 1080N, 720P, 960P, D1

Recording Parameters

MAX: 16 x 5MP@ 15 FPS

Recording Playback

16 Channel

HDD Port

1 x SATA (Max- 8TB Each)

Backup Mode

Network, USB HDD

Dual Stream

Supported

Network Port

RJ45 10/100 MBPS Adaptive Port

Network Protocol

IPv4,PPPoE,3G,DDNS,NTP, ARSP, SMTP, P2P Cloud, UPnP

ONVIF Protocol

Compliant

P2P Cloud Service

Available

PTZ Control

Yes

USB Connectors

2 USB Ports

Alarm Input

N. A.

Alarm Output

N. A.

Power Supply

DC12 Volts 2 Amperes

Power Consumption

≤15W (No HDD)

Dimension

255mm x 255mm x 45mm

Weight

≤1.5 KGs (No HDD)

Operational Temperature

+5°C ~ +50°C

Storage Temperature

-20°C ~ +70°C

Environmental Humidity

30% ~ 95% Humidity

Certifications

CE, FCC
