Parameter

Details

Model

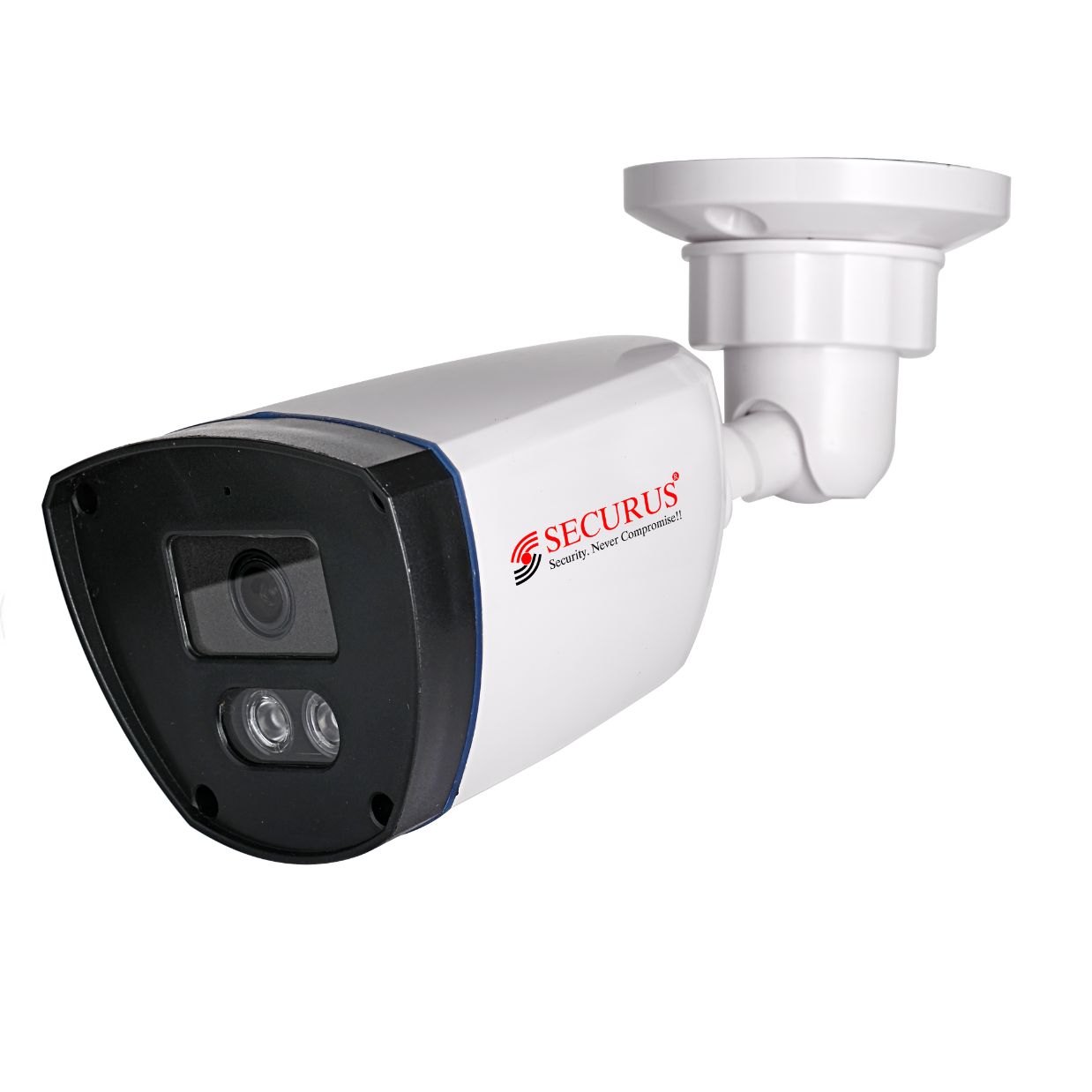

SS-20L2TP-TPUTL-M5(S)

Make

SECURUS

Product Range

Utility Range

Image Sensor

1/2.5" 5.0 Megapixel Image Sensor

TV System

PAL/NTSC

Video Standard

Compliance with HD-TVI

Effective Pixel

2592 x 1944 Pixels

Video Frame Rate

2592 x 1944 Pixels @ 25FPS/@ 30FPS

Video Output

1 x BNC Video Out

Video Output Format

HD-TVI, CVI, AHD, CVBS

Audio

Built in coaxial audio

Lens Mount

3.6mm/4.0mm/6.0mm HD Lens

Day/Night

Auto(ICR)/Color/BW

BLC

Auto

AWB

Auto

IR Distance

20 ~ 30 Meters

LED Wavelength

1 Smart IR LED

Minimum Illumination

0.01 Lux/ F1.2 (AGC ON)

Noise Reduction

2D/3D

Synchronization

Internal

Electronic Shutter Speed

1/25 (1/30) - 1/50,000 seconds

Transmission

500 Meters @ 75-3 Coaxial Cable

Power Supply

12V DC ±10%

Operation Temperature

-10 to +60 deg. C (Humidity: 90% max)

IP Rating

IP67 (Plastic Body)

Certifications

CE, FCC
