44,2 Securus CCTV

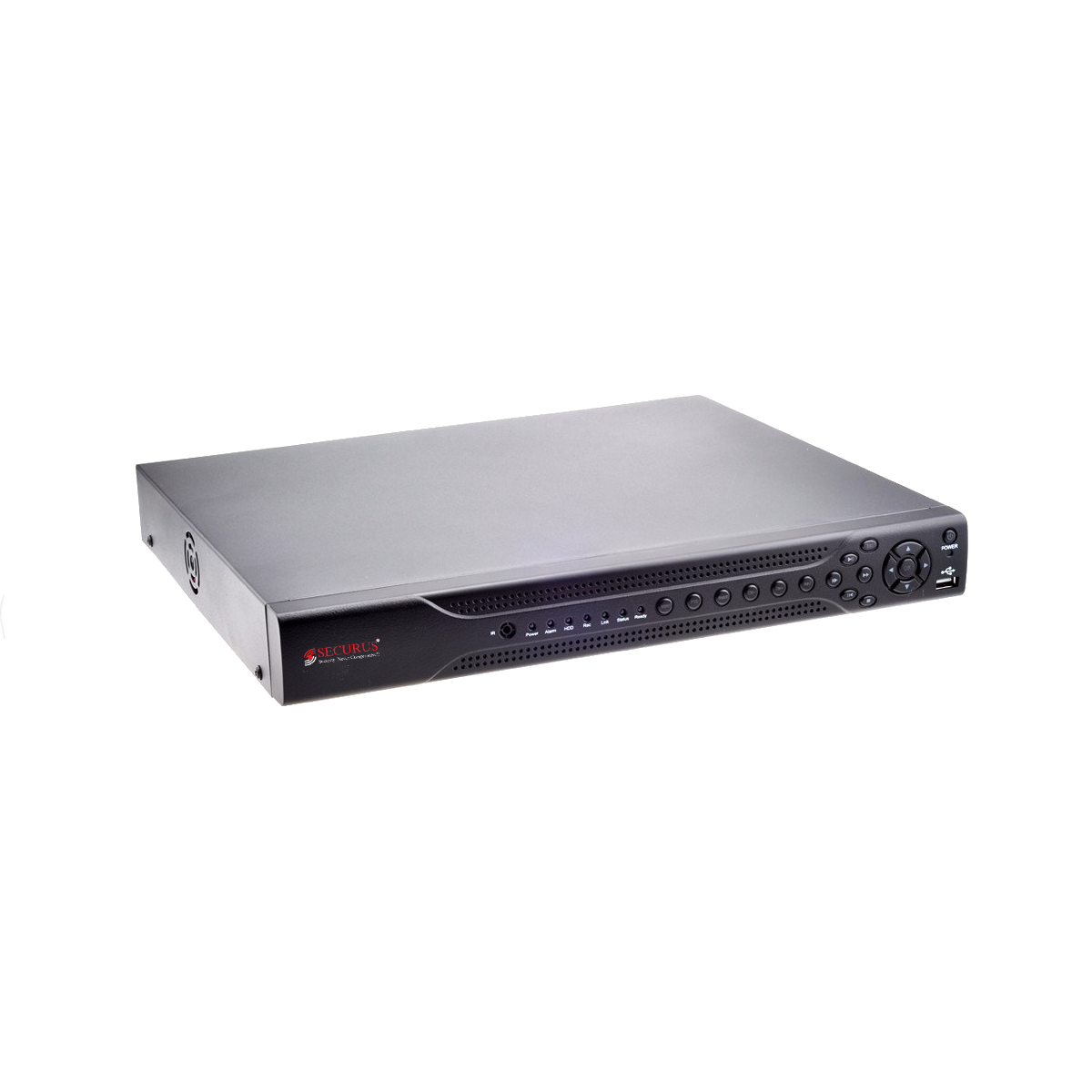

SS-N8016RV-H2-M5

16CH H.265AI NVR WITH FACE DETECTION
  • Support Up to 12.0MP IP Camera
  • Max. 16Ch
  • 2 SATA x 8TB HDD
  • Mobile Application: RMEye Pro
Download Datasheet
ModelSS-N8016RV-H2-M5
MakeSECURUS
User InterfaceGraphic User Interface (GUI)
Operating SystemEmbedded Linux
Operation ModePreview, Record, Playback, Backup, Network
Password SecurityMulti-level User Management
ONVIFSupport
Video Input16ch
HDMI OutputSupports (Max :1080P)
VGA OutputSupports (Max: 1080P)
CVBS main outputN.A.
Audio output1 Ch, RCA connector
Display1/4/6/8/9/10/13/16 optional
Video standardPAL/NTSC
Video compressionH.265AI/H.265+/H.265/H.264+/H.264
Intelligent FunctionsTrip Wire, Face Detection
Video encoding resolution12MP; 8MP; 5MP; 4MP; 3MP; 1080P
Video frame ratePAL:1-25FPSNTSC: 1-30FPS
Video bit rate1536kbps-3072kbps
Stream TypeVideo & Audio/Video
Audio compressionG.711a
Recording modeAlways/Schedule/Alarm/ recording/Motion detection recording
Video searchTime/Channel/Event
Display ZoomLive Playback & Mobile
Audio bit rate8—32kbps
Dual-streamSupports
Mobile Monitoring"RMEeyePro" Application for Android And iPhone
Recording resolution16 CH RealtimeRecording
HDD Port2 SATA
HDD Maximum Capacity8TB for each Sataconnector
Voice talkSupport, 1CHBNC line in/1CH RCA Audio out.
Record modeAudio & Video recording simultaneously
Remote controlSupports
Network protocolSupports IE/PPPoE/DDNS
DDNS Serverwww.securusddns.com
Network1 RJ4510M/100M/1000M
USB Connector2 USB 2.0
Firmware updateSupport USB update/Network update
Alarm inputN.A.
Alarm outputN.A.
Power supplyNVR: DC 12V 4A
Operation Temperature-10℃--+55℃
Operation Humidity10%--90%
ChassisStandard 1.5U
Dimension298mm (W)×310mm (L)×60mm (H)
Weight(without HDD) ≤1.0Kg
Certifications CE, FCC, RoHS, BIS
