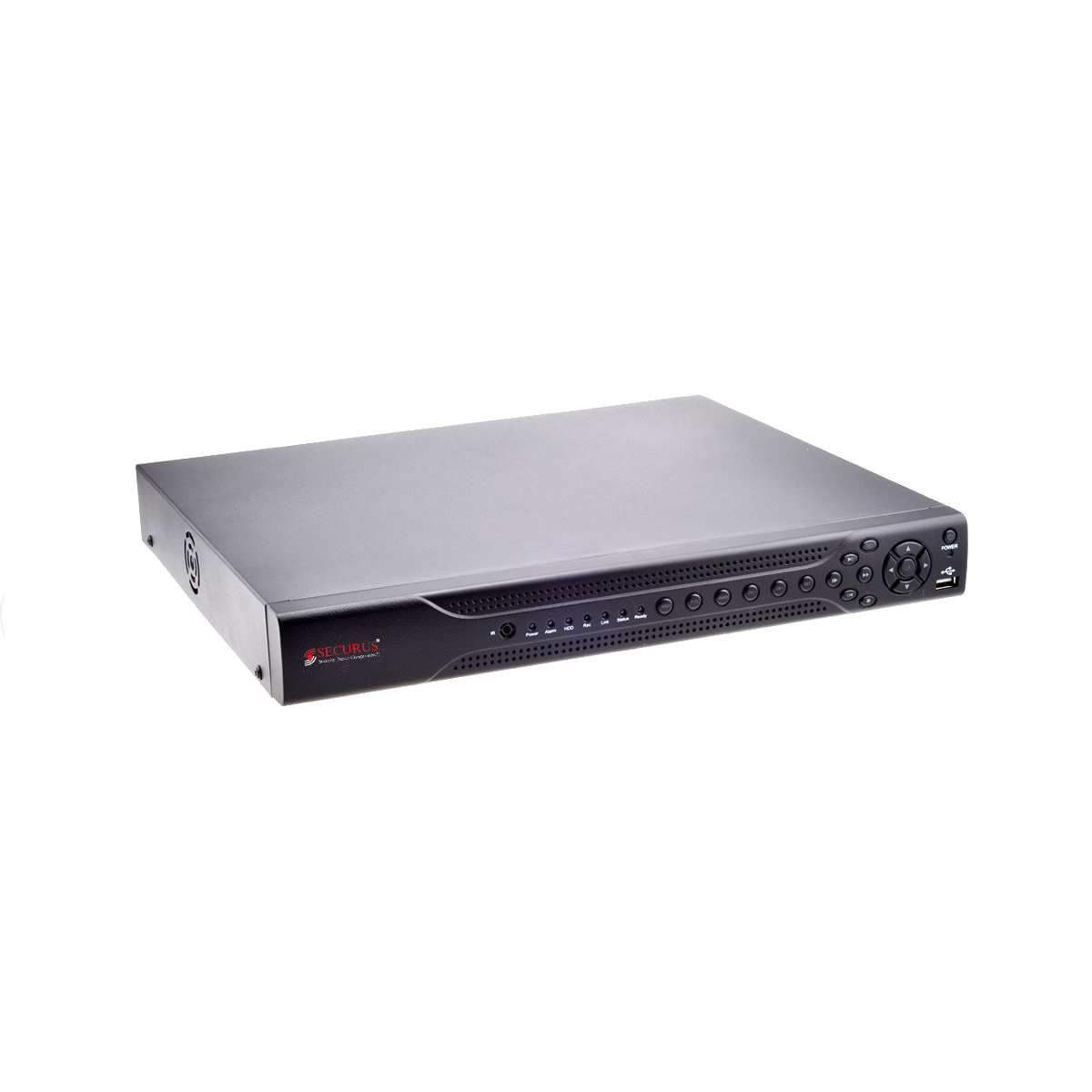

44,2 Securus CCTV

SS-N8009RVA-H1-M5

9CH H.265 AI NVR WITH FACE DETECTION & HUMAN DETECTION
  • Support Up to 5.0MP IP Camera
  • Max. : 9Ch X 5MP
  • 1 SATA X 8TB HDD
  • Mobile Application : RMEye Pro
Download Datasheet
ModelSS-N8009RVA-H1-M5
MakeSECURUS
User InterfaceGraphic User Interface (GUI)
Operating SystemEmbedded Linux
System resourcesSimultaneous multi-channel real-time recording, playback, network operation, USB backup
Operator Interface16-bit true color graphic menu operation interface, support mouse operation
Preview1/4/9
Operation ModePreview, Record, Playback, Backup, Network
Password SecurityMulti-level User Management
ONVIFSupport
Video Input9ch 5M/9ch1080P
Access Bandwidth64Mbps
Forwarding bandwidth36Mbps
HDMI OutputSupports (Max : 4K)
VGA OutputSupports (Max: 1080P)
CVBS main outputN.A.
Audio output1 Ch
Display1/4/6/8/9 optional
Video standardPAL/NTSC
Video CompressionH.265AI/H.265+/H.265/H.264+/H.264
Display QualityMax: 1560*1440
Playback Quality5M/1080P
Intelligent FunctionsTrip Wire, Face Detection, Human Detection
Video encoding resolution5MP; 4MP; 3MP; 1080P
Video frame ratePAL:1-25FPSNTSC: 1-30FPS
Video bit rate1536kbps-3072kbps
Stream TypeVideo & Audio/Video
Audio compressionG.711a
Recording ModeManual/Alarm/Dynamic Detection/ Timing
Local playback1*5M/2*1080P
Video searchTime/Channel/Event / Calender
Display ZoomLive Playback & Mobile
Audio bit rate8—32kbps
Dual-streamSupports
Mobile Monitoring"RMEeyePro" Application for Android And iPhone
Recording resolution9CH RealtimeRecording
HDD Port1 SATA
HDD Maximum Capacity8TB for each Sataconnector
Voice talkSupport, 1CHBNC line in/1CHRCA Audio out.
Record storageHDD、Network
Record modeAudio & Video recording simultaneously
Remote ControlSupports
Backup modeNetwork backup, USB hard disk, USB burner, SATA burner
Video Output1ch VGA,1ch HDMI HD output
Network protocolSupports IE/PPPoE/DDNS
DDNS Serverwww.securusddns.com
Network1 RJ45 10M/100MAdaptive EthernatePort
USB Connector2 USB 2.0 Ports
Firmware updateSupport USB update/Network update
Alarm inputN.A.
Alarm outputN.A.
Power supplyNVR: DC 12V 3A
Power Consumption<10W(Without HDD)
Operation Temperature0℃--+55℃
Operation Humidity10%--90%
ChassisStandard 1.0U
Dimension118mm (W)×118mm (L)×69.5mm (H)
Weight(without HDD)≤1.0Kg
CertificationsCE, FCC, ROHs
