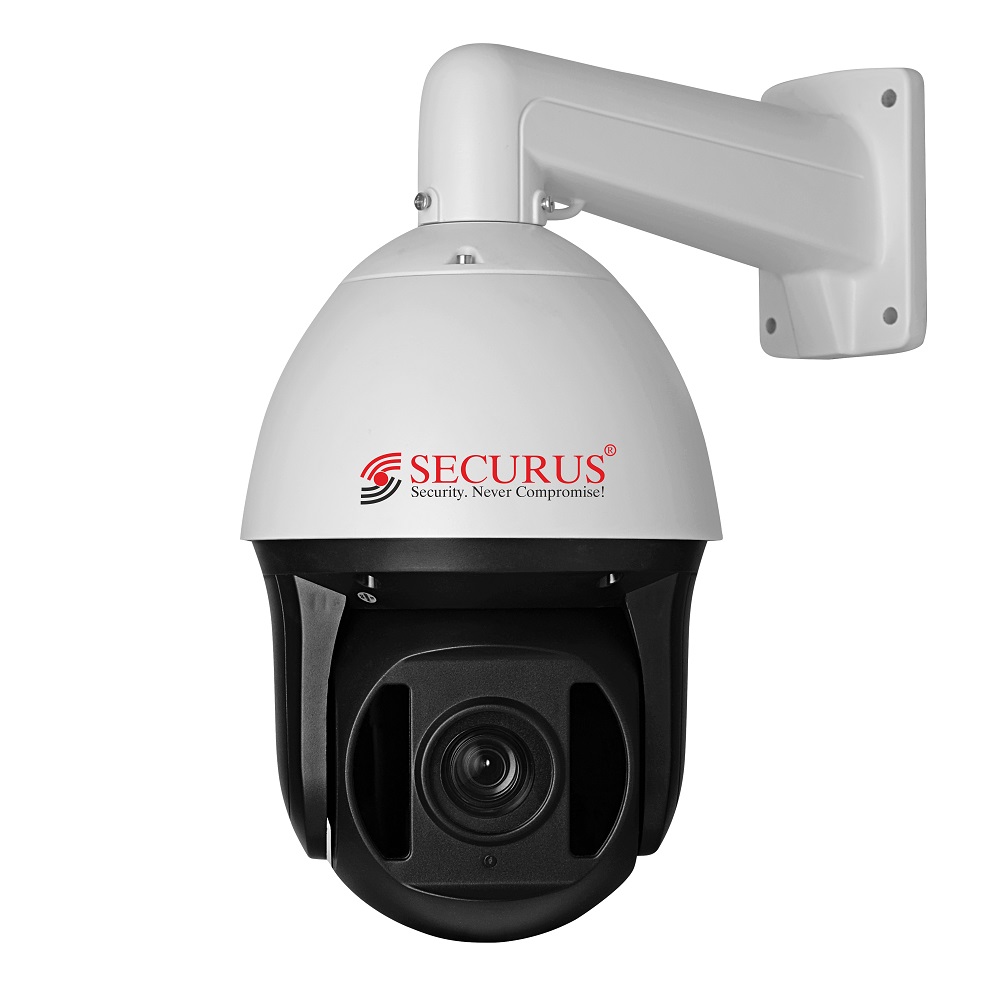

Model | SS-NE30XS-M2 |
Make | SECURUS |
Image Sensor | 1/3â€, 2.0 Megapixel, progressive scan, CMOS |
Lens | 4.5mm ~ 135mm (30x optical zoom) |
Iris | Auto/Manual; F1.6~ F4.8 |
Shutter | Auto/Manual. |
Shutter Time | 1/6s ~ 1/8000s |
Minimum Illumination | Color: 0.03 Lux B/W: 0.01 Lux (IRON: 0.0 Lux) |
S/N Ratio | ≥ 50dB |
Day/Night Mode | IR-Cut filter with auto switch (ICR) |
IR Distance | 200 Meters |
Audio Compression | G.711 |
Audio Input | Supports built-in Audio (Optional) |
Video Compression | H.264, H.265 |
Video Resolution | 1920 x 1080 Pixels (Max) |
CVBS Output | Supports 1 x BNC Video Output (Optional) |
Frame Rate | 1080P@ 30FPS; 720P@ 30FPS; D1@ 25FPS |
Video Streaming | Triple Streams |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 Areas |
Digital Zoom | Supports |
Alarm I/O | 1/1 (Optional) |
Network Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, QOS, NTP, FTP, HTTP, SNMP, SIP |
Pan Range | 360°Endless |
Pan Speed | 0.02°/s ~ 120°/s |
Tilt Range | -15°~ +90°(Auto-Reverse) |
Tilt Speed | 0.1°/s ~ 160°/s |
Auto Flip | Pan: 180°; Tilt: 93° |
Presets | 220 Presets |
Dwell Time | 1s ~ 60sSelectable |
Guard Tours | 3 Tours |
Guard Points | Max: 16 Points |
Communication Protocol | Pelco-D; Pelco-P |
Baud Rate | 9600BPS(Default) |
Park Time | 1 ~ 60 Minutes |
Network | 10M/100MBase-TX Ethernet |
Power Supply | 12V4Amp |
Power Consumption | ~ 25W(Without IR) |
Weight | 5.28 KGs |
Working Temperature | -40°C~ +65°C |
Working Humidity | ≤90% RH (Non Condensing) |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
Lightning Protection | Transient Voltage 6000V |
Certifications | CE, FCC, RoHS |
