89,10 Securus CCTV

SS-NC50DCP-EC-VF-M2

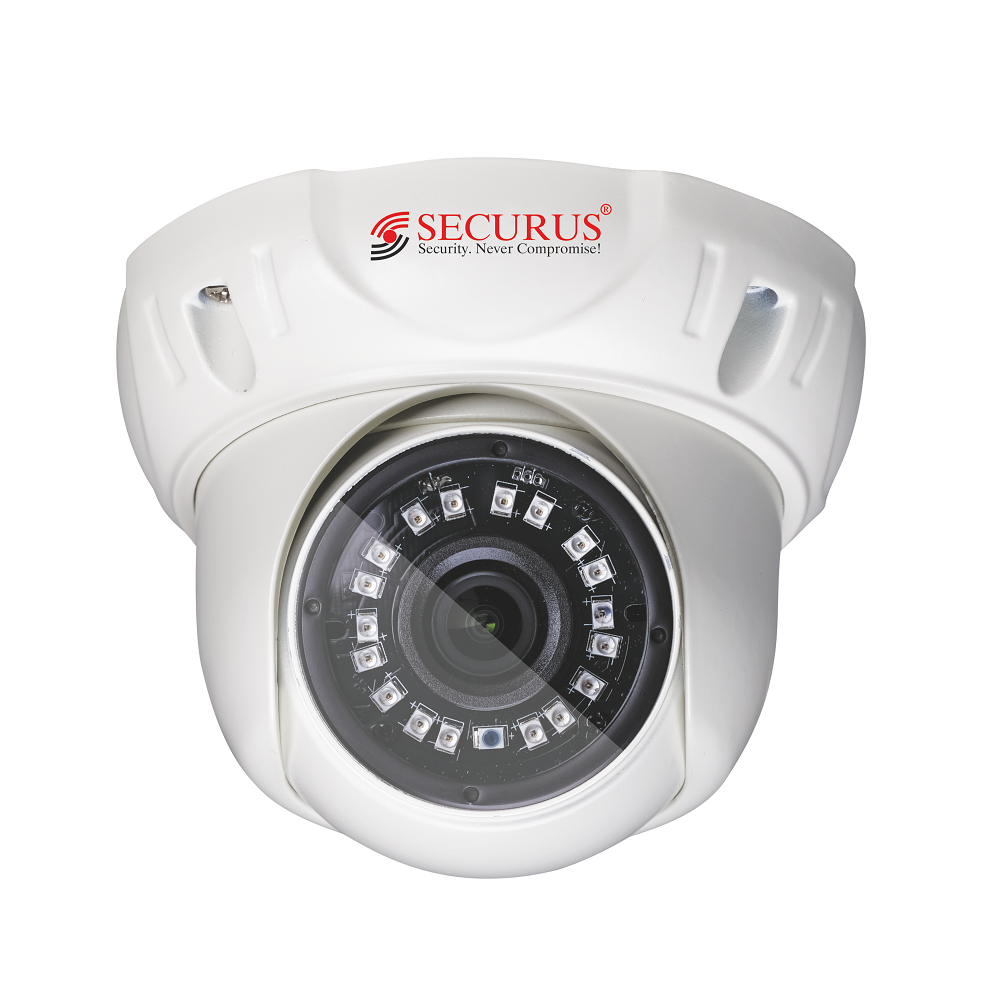

3.0MP, MOTORIZED ZOOM IP DOME CAMERA
  • 3.0MP Progressive Scan
  • Max. Resolution : 1080P
  • Lens : 2.8mm~12.0mm
  • < 120db True WDR
Download Datasheet
ModelSS-NC50DCP-EC-VF-M2
MakeSECURUS
Image Sensor1/2.7“ Progressive Scan CMOS
Image Pixels2304 x 1296 (3.0MP), 1920 x 1080(2.0 MP)
Minimum Illumination0.01Lux @ (F1.2,AGC ON),0Lux with IR
Day/NightAuto (ICR) / Color / Black & White
WDR (Wide Dynamic Range)≥120db
IR LED24 Pcs SMD IR LED
IR Distance50 Meters
Shutter TypeManual/Auto
Shutter Speed1/25s ~ 1/100000s
Lens Mount2.8mm~12.0mm Motorized Auto-Focus Lens
SD CardSupported (Upto 128 GB) (Optional)
Network Interface10/100 MBPS RJ45 Connector
Network ProtocolHTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
Electronic Shutter SpeedManual/Auto (1/25 ~ 1/100000 S
ONVIF ProtocolSupports
Video EncodingH.265AI/H.265+/H.265/H.264+/H.264
Video Bitrate128kbps~ 8Mbps
Video StreamsMain Stream : 2.0MP; 25/30 FPS Sub Stream 1: 720 x 576; 25/30 FPS Third Stream : 352x240, 25/30FPS
Digital Zoom16X
Audio InputYes; 1Ch;2Vp-p 1kᲲImpedence
Audio OutputYes; 1Ch; 16ᲲImpedence
Audio CompressionG.711A
Image SetupMirror Image/Reverse/Color Settings
AlarmN/A
Operation Temperature-10°C~ +55°C
Operation Humidity0% ~ 90%
Power SupplyDC12V, PoE(IEEE802.3af)(Class 0)
Power Consumption≤8.5W
Dimensions140mm x 100mm
Weight≤0.5 KGs
Ingress ProtectionIP67
Vandal ResistantIK10
CertificationsCE, FCC, RoHS, BIS
