74,10 Securus CCTV

SS-NC20L2CP-ECF-M2

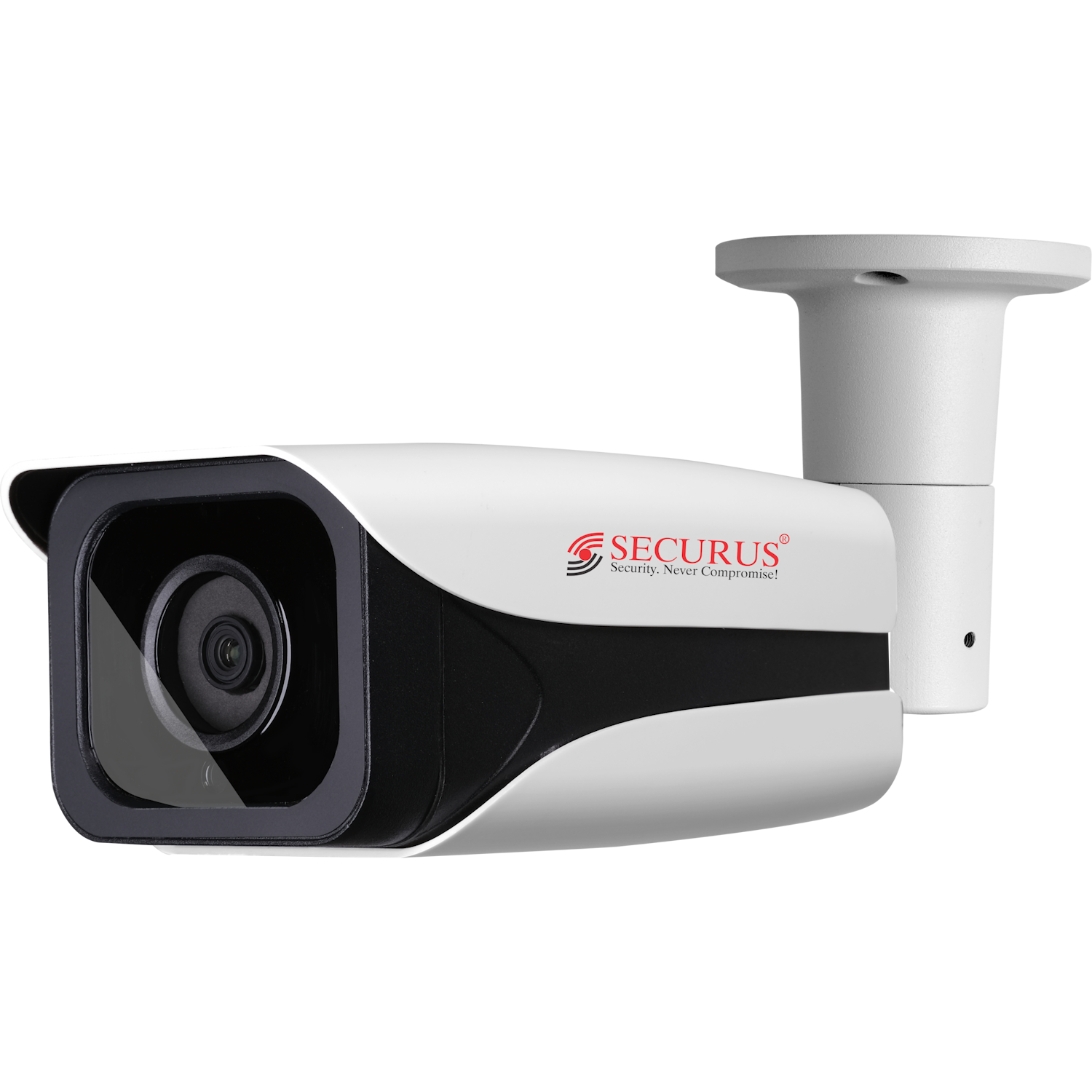

2.0MP, 20~30MTS OUTDOOR IP AI BULLET CAMERA
  • 2.0MP CMOS SENSOR, H.265+
  • SMD IR LED : 18Pcs, 20-30 MTS
  • 2 Way Audio, 2.4/4.0mm HD Lens
  • Face Detection : IP67
Download Datasheet
ModelSS-NC20L2CP-ECF-M2
MakeSECURUS
Image Sensor1/2.7“ Progressive Scan CMOS
Image Pixels2304x1296(3.0MP),1920x 1080(2.0MP)
Minimum Illumination0.01Lux@ (F1.2,AGCON),0Luxwith IR
Day/NightAuto (ICR) / Color / Black & White
WDR(Wide Dynamic Range)≥120db
BLC/AGCSupports
IR LED18 SMD IR LED
IR Distance20 ~ 30 Meters
Shutter TypeManual/Auto
Shutter Speed1/25s~ 1/100000s
Lens Mount2.4/4.0mm
Lens TypeBoard Lens
Network Interface10/100 MBPS RJ45Connector
Network ProtocolHTTP,HTTPS,TCP,ARP,RTSP,RTP,UDP,RTCP, SMTP,FTP,DHCP,DNS,DDNS,PPPoE,IPv4/v6, SNMP,QoS,UPnP,NTP,IGMP
Electronic Shutter SpeedManual/Auto (1/25 ~ 1/100000 S
ONVIF ProtocolSupports
Video EncodingH.265AI/H.265+/H.265/H.264+/H.264
Video Bitrate128kbps~ 8Mbps
Video StreamsMain Stream : 1920 x 1080; 25/30 FPS Sub Stream 1: 720 x 576; 25/30 FPS
Digital Zoom16X
Audio InputYes; 1Ch;2Vp-p 1kᲲImpedence
Audio OutputYes; 1Ch; 16ᲲImpedence
Audio CompressionG.711
Image SetupMirror Image/Reverse/Color Settings
AlarmN/A
Intelligent AI FeatureFace Detection; Face Recognition; Trip Wire
Operation Temperature-30°C~+60°C
Operation Humidity0%~95%
Power SupplyDC12V, PoE(IEEE802.3af)(Class 0)
Power Consumption≤8.5W
Dimensions180mm x 70mm x 70mm
Weight≤0.5 KGs
Ingress ProtectionIP67
CertificationsCE,FCC,RoHS, BIS
